MATERIAL
CNC machined aluminium
Stainless steel screws
MEASURES
Radius from 30 to 94 mm
Thickness 17 mm
Weight 90 grams
CUSTOMIZATIONS
Laser marking
Anodizing colors
COLORS
13 colors in matte and glossy finishing
DESIGN
ELLIPTICAL SOLUTION
BladeX is designed to minimize bulk and weight while maximizing spacing accuracy, especially at longer ranges beyond 42 meters (46 yards), where distance estimation becomes more challenging.
Its elliptical and symmetrical shape makes it compatible with scopes that feature either clockwise or counterclockwise parallax adjustment.
The spokes and outer contours are engineered to provide optimal grip for both right- and left-handed shooters.
THE SKILL
OPTICAL RANGE ESTIMATION COMPENSATION SYSTEM
All optics experience slight variations in range estimation due to changes in ambient temperature. This effect becomes more noticeable in regions with significant temperature swings between winter and summer.
BladeX features dedicated slots that allow for precise compensation of this shift by repositioning the wheel without needing to remove the clamp from the scope.

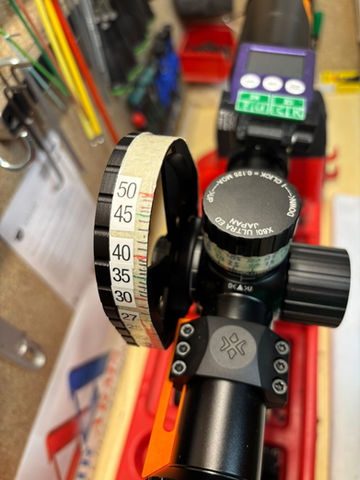

A laser-etched scale enables accurate rotation and alignment of BladeX for optimal performance.
FAST AND EASY
DIFFERENT ADAPTERS FOR DIFFERENT OPTICS
BladeX is compatible with a wide range of optics, including those featuring an illuminated reticle control on the parallax turret.
Its clamp-style mounting system does not damage the original components of the scope, and thanks to internal adapters, it can be used with the following optics:
MARCH X
5x-50x56mm
10x-60x56mm (High Master)
8x-80x56mm (Majesta)
MARCH
10x-60x52mm
8x-80x56mm
DELTA OPTICAL
Stryker HD
FALCON OPTICS
T50i
X50
X60i
HAWKE
Sidewinder
Airmax
SIGHTRON
45 x 45
PLR
SIII
S30
S6
VECTOR OPTICS
Sentinel pro
Sentinel 8x-32x50mm
Continental 8X-48x56mm
and more...
The parallax adjustment system of a scope works by reducing the rotation angle of the turret as the target distance increases. This causes a drastic reduction in space between one distance mark and the next. An elliptical wheel compensates for this by gradually increasing its radius, keeping the spacing readable. To make the elliptical wheel BladeX work correctly, you must match the maximum radius to the farthest target distance. See the instructions for correct installation and adjustment:
