INSTRUCTIONS
30 - 34mm SCOPE RING WRAP
11 mm dovetail mount
It is recommended to tighten the 4 screws positioned at the top of the mount in an "X" pattern. Tighten the top right, bottom left, top left, and bottom right until reaching the recommended torque.
It is also recommended to tighten the 2 screws at the base of the mount gradually and alternately, increasing the torque little by little until reaching the recommended torque.
The use of a torque wrench is recommended.
BASE: 2,5 Nm · 22 in/lbs
RING: 2 Nm · 18 in/lbs
30- 34mm SCOPE RING WRAP
Picatinny rail
It is recommended to tighten the 4 screws positioned at the top of the mount in an "X" pattern. Tighten the top right, bottom left, top left, and bottom right until reaching the recommended torque.
It is also recommended to tighten the 2 screws at the base of the mount gradually and alternately, increasing the torque little by little until reaching the recommended torque.
The use of a torque wrench is recommended.
BASE: 4,5 Nm · 39,8 in/lbs
RING: 2 Nm · 18 in/lbs
BladeX
specify for Falcon X60i Ultra scope
The parallax adjustment system of a scope works by reducing the rotation angle of the turret as the target distance increases. This causes a drastic reduction in space between one distance mark and the next. An elliptical wheel compensates for this by gradually increasing its radius, keeping the spacing readable. To make the elliptical wheel BladeX work correctly, you must match the maximum radius to the farthest target distance. See the instructions for correct installation and adjustment:
The use of a torque wrench is recommended.
WHEEL: 0,6 - 0,8 Nm · 5,3 - 7,1 in/lbs
RING: 0,6 - 0,8 Nm · 5,3 - 7,1 in/lbs

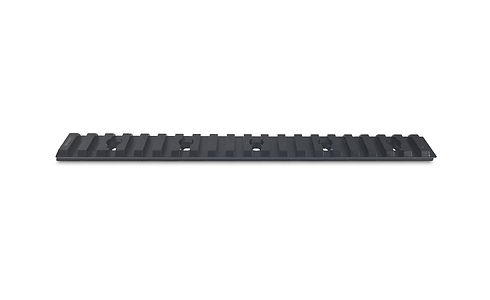

Riser
11 mm dovetail
It is recommended to tighten the screws gradually, alternating between the front and rear screws.
The use of a torque wrench is recommended.
BASE: 4,5 Nm - 39,8 in/lbs
